TuffTrak® Geogrid

GeoGrid is TuffTrak®’s cellular grid paving system which enables the fast and efficient implementation of permanent ground reinforcement and stabilization. The cellular design of the grids allows the dispersion of excess rain and flood water. It is ideal for integration into Sustainable Urban Drainage Systems (SUDS) and in areas prone to flooding or with water dispersion problems. GeoGrid is also ideal for use in car parks, access routes, gateway or entrance areas, equestrian areas, fire and emergency routes, private driveways or golf buggy routes.

Manufactured from 100% recycled high density polyethylene and featuring an effective and simple interlocking design for fast and efficient installation, the grids can be lifted directly from the pallet as pre-connected 1m2 sections. GeoGrid Standard can support loads of up to 350 tons per m2 and Premium up to 500 tons mer m2.

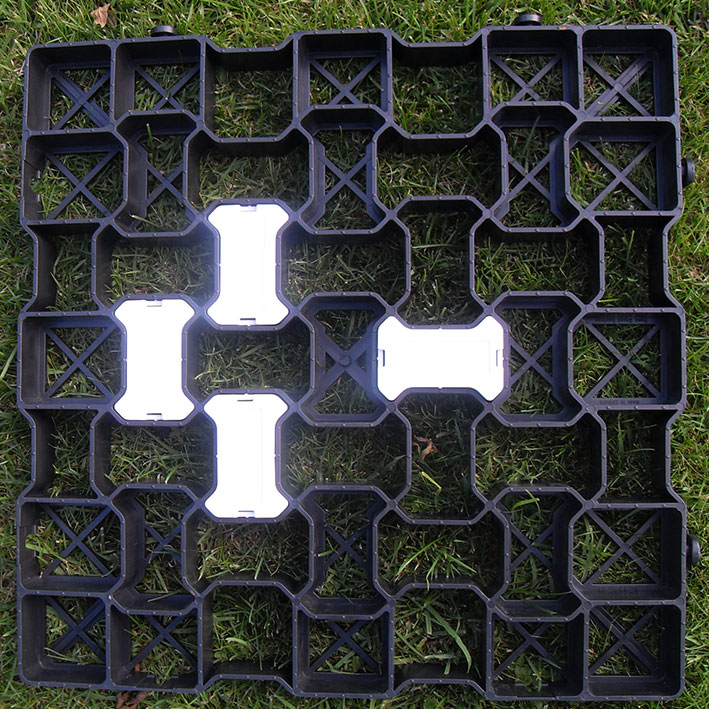

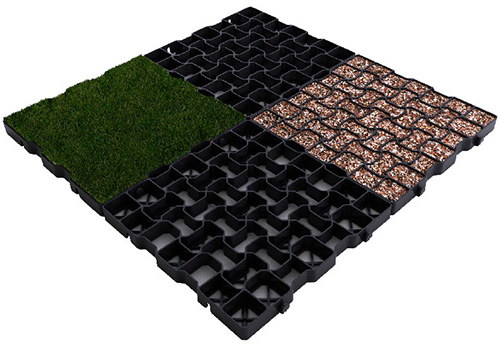

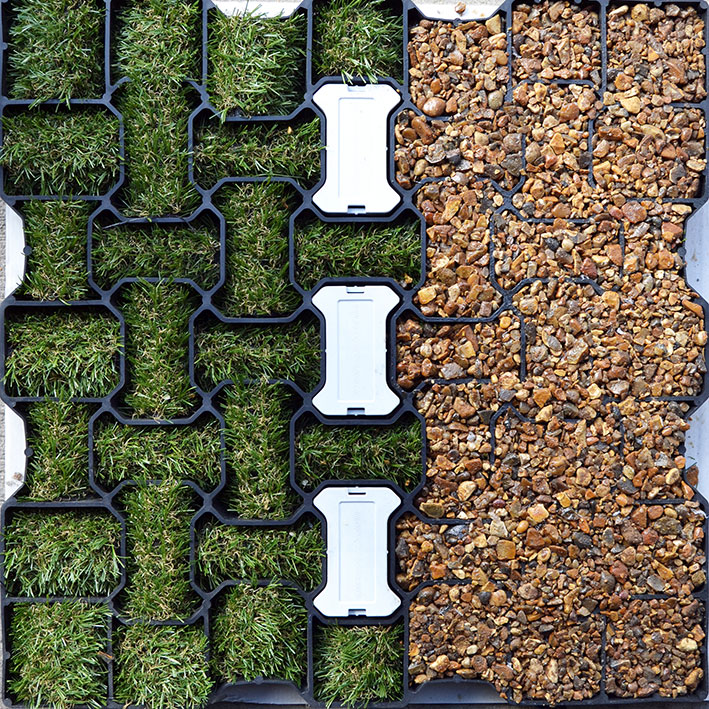

GeoGrid can be filled in with aggregate or decorative stones to provide robust ground reinforcement in areas of high pedestrian or vehicle use and can also be seeded with grass to provide an environmentally friendly and aesthetic solution. There is also an option of white or hi-vis demacration blocks ideal for use where there is a requirement for indicating specific zones such as in car parks, depot areas, disabled parking bays, and traffic flow directions.


  • 100% Recycled High Density Polyethylene (HDPE)
  • Premium option supports loads of up to 500 tons per m²*
  • Pre-connected as 1m2 sections
  • Interlocking design for fast installation
  • Durable and lightweight design
  • Available in Standard or Premium
  • Can be filled in with decorative stones, seeded with grass or with hi-vis inserts

GeoGrid is an erosion control cellular paving system with a load capacity of up to 500 tons* per m2. Lightweight and durable, GeoGrid is ideal for use in pedestrian areas and access routes preventing erosion and flooding in sensitive areas.

Material: 100% Recycled High Density Polyethylene (HDPE)


  • Car parks
  • Sustainable Urban Drainage Systems (SUDS)
  • Access Routes
  • Gateways or entrances
  • Emergency service routes
  • Private Driveways
  • Public areas

Download TuffTrak® GeoGrid Product Sheet with Specs and Sizes


Product Photos (click to view larger image)

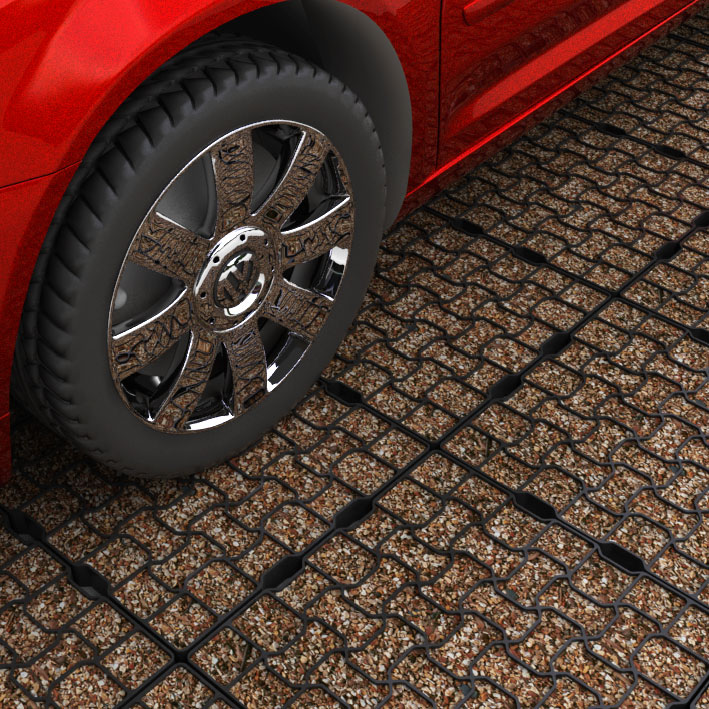

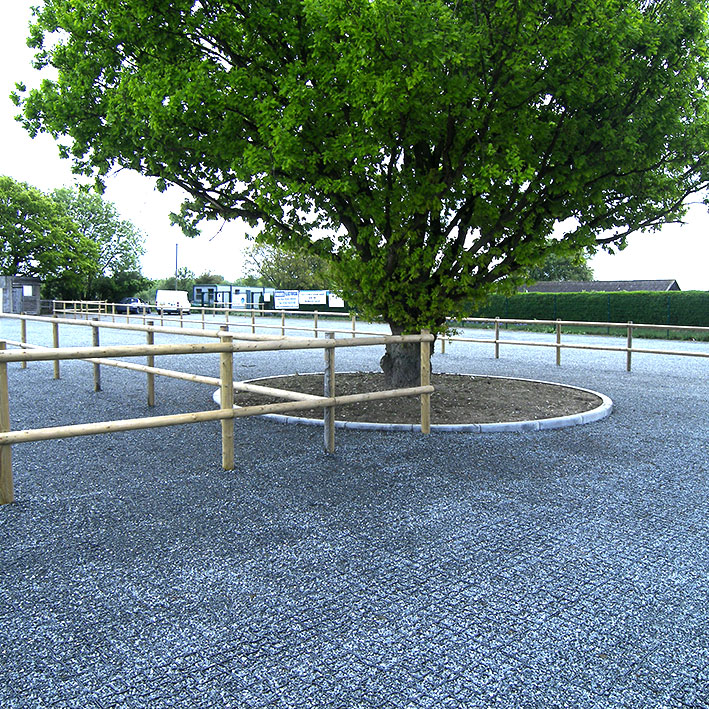

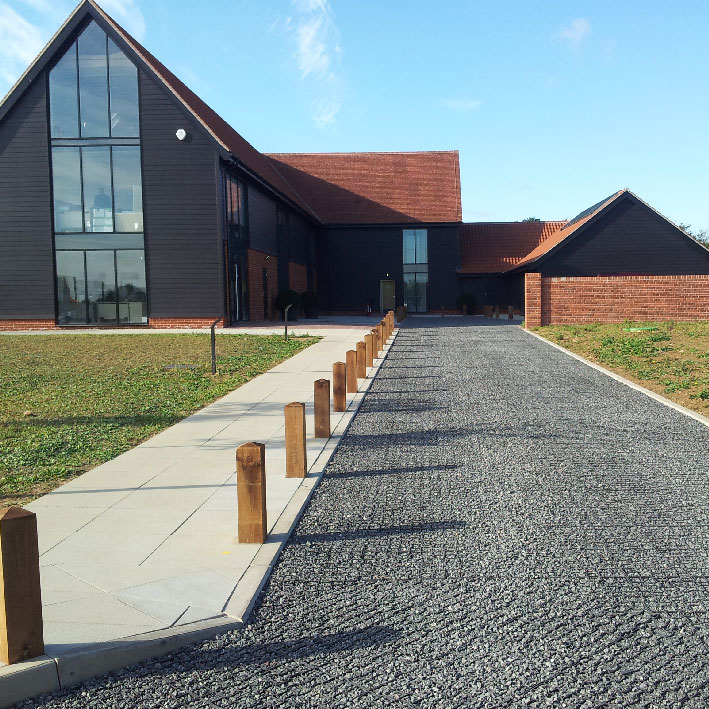

TuffTrak GeoGrid
TuffTrak GeoGrid
TuffTrak GeoGrid
TuffTrak GeoGrid
TuffTrak GeoGrid
